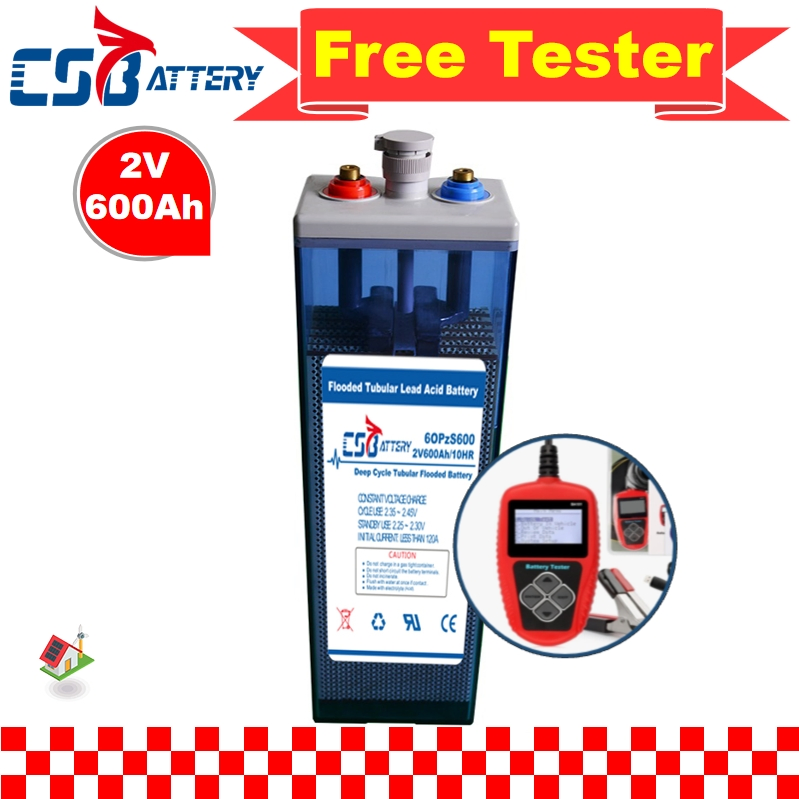

2V OPzS Tubular Flooded Lead Acid Battery OPzS2-600
Tubular deep cycle solar flooded batteries are recognized as the most reliable and high-quality battery systems in the industry. Designed with advanced technology, they offer a long service life of 20-25 years and over 2000 cycles at 80% DOD.
| Technical Specifications (OPzS2-600) | |||
|---|---|---|---|
| Nominal Voltage | 2V (Single Cell) | ||
| Design Floating Life @ 25ºC | 20 Years | ||
| Max. Discharge Current @ 25ºC | 2500A (5s) | ||
| Reference Capacity | C24 | 718.2AH | |
| C48 | 808.0AH | ||
| C100 | 867.8AH | ||
| C240 | 900.0AH | ||
| Internal Resistance (Full Charged @ 25ºC) | ≤ 0.45 mΩ | ||
| Self-Discharge @ 25ºC per Month | 2% | ||
| Model | Voltage (V) | Capacity (Ah) | Length (mm) | Width (mm) | Total Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 4OPzS200 | 2 | 200 | 103 | 206 | 410 | 12.8 |
| 6OPzS300 | 2 | 300 | 145 | 206 | 410 | 17.5 |
| 6OPzS600 | 2 | 600 | 145 | 206 | 701 | 32.6 |
| 10OPzS1000 | 2 | 1000 | 233 | 210 | 701 | 54.0 |
| 12OPzS1500 | 2 | 1500 | 275 | 210 | 828 | 81.7 |
| 24OPzS3000 | 2 | 3000 | 576 | 212 | 806 | 170.0 |
