Constant Safe Power For You!
The Patented High-Temp Deep Cycle Solar gel battery is recognized as the most reliable system in the industry. Designed with advanced GEL technology, it offers a 15-20 year service life, making it the ideal partner for solar markets and high-temperature environments. It complies with international standards such as IEC60896-21/22, BS6290-4, and the Eurobat Guide.
| Parameter | Details |
|---|---|
| Nominal Voltage | 6V (3 cells per unit) |
| Design Floating Life @ 25ºC | 20 Years |
| Nominal Capacity @ 25ºC | 200Ah (20 hour rate) |
| Internal Resistance | ≤3mΩ (Full Charged) |
| Max. Discharge Current | 600A (5s) @ 25ºC |
| Self-Discharge | 3% per Month @ 25ºC |
| Dimensions (L*W*H) | 306 * 168 * 220 mm |
| Net Weight | 30.3 kg |
| Model | Voltage (V) | Capacity (Ah) | Weight (kg) | Terminal |
|---|---|---|---|---|

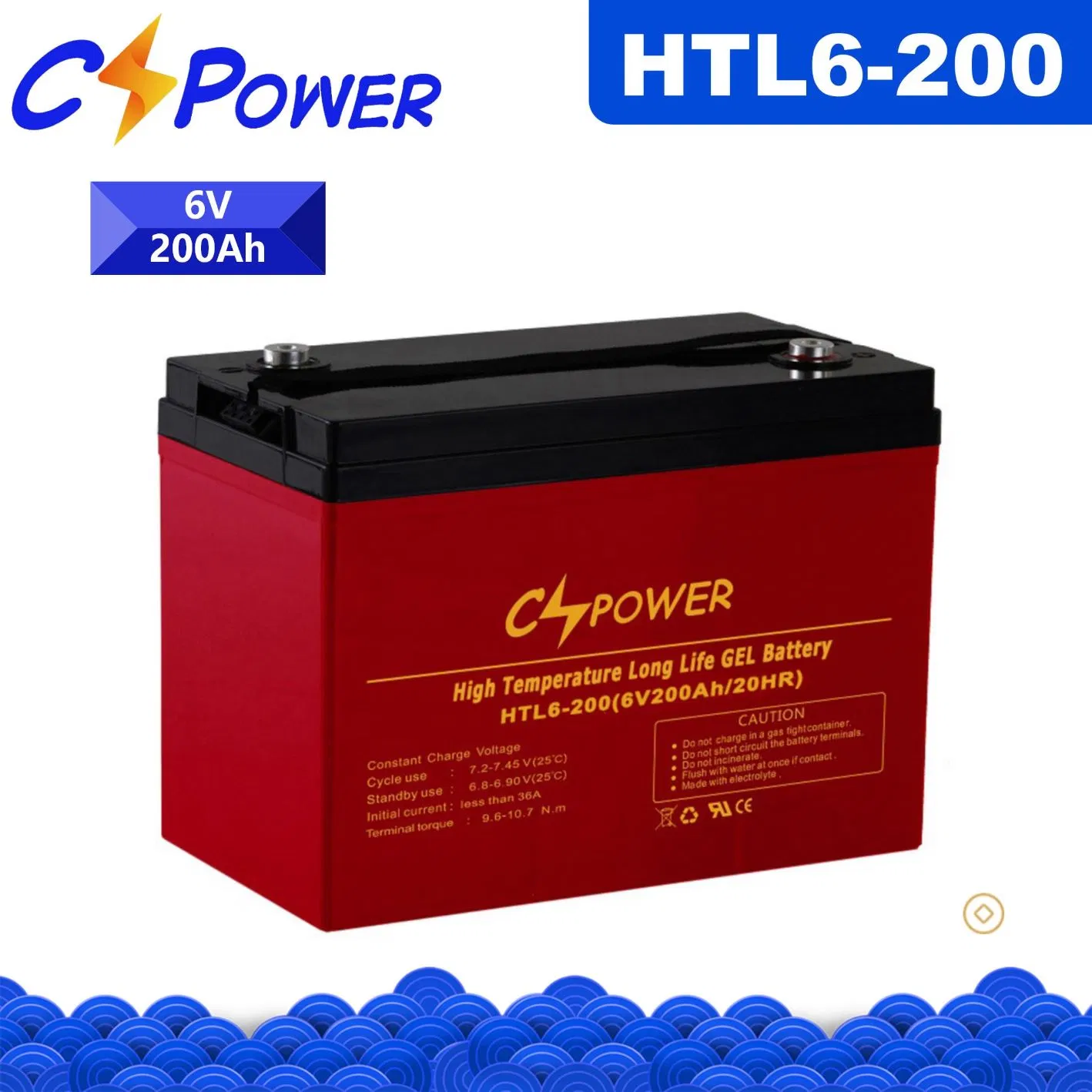

| HTL6-200 | 6V | 200 | 30.3 | M8 |

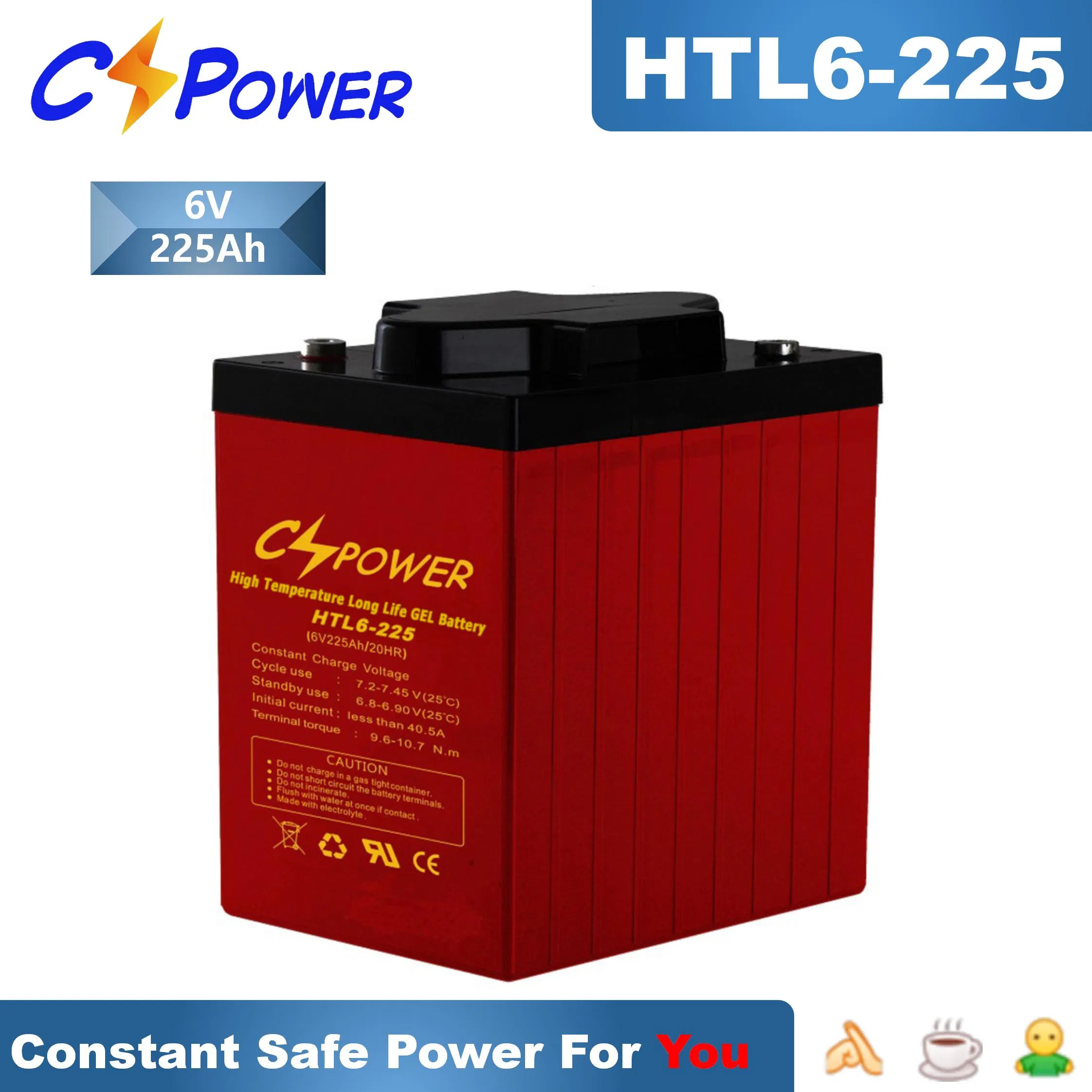

| HTL6-225 | 6V | 225 | 30.8 | M8 |
| HTL6-250 | 6V | 250 | 34.8 | M8 |
| HTL6-310 | 6V | 310 | 46.3 | M8 |
| HTL8-170 | 8V | 170 | 34.3 | M8 |
| HTL8-200 | 8V | 200 | 38.3 | M8 |
