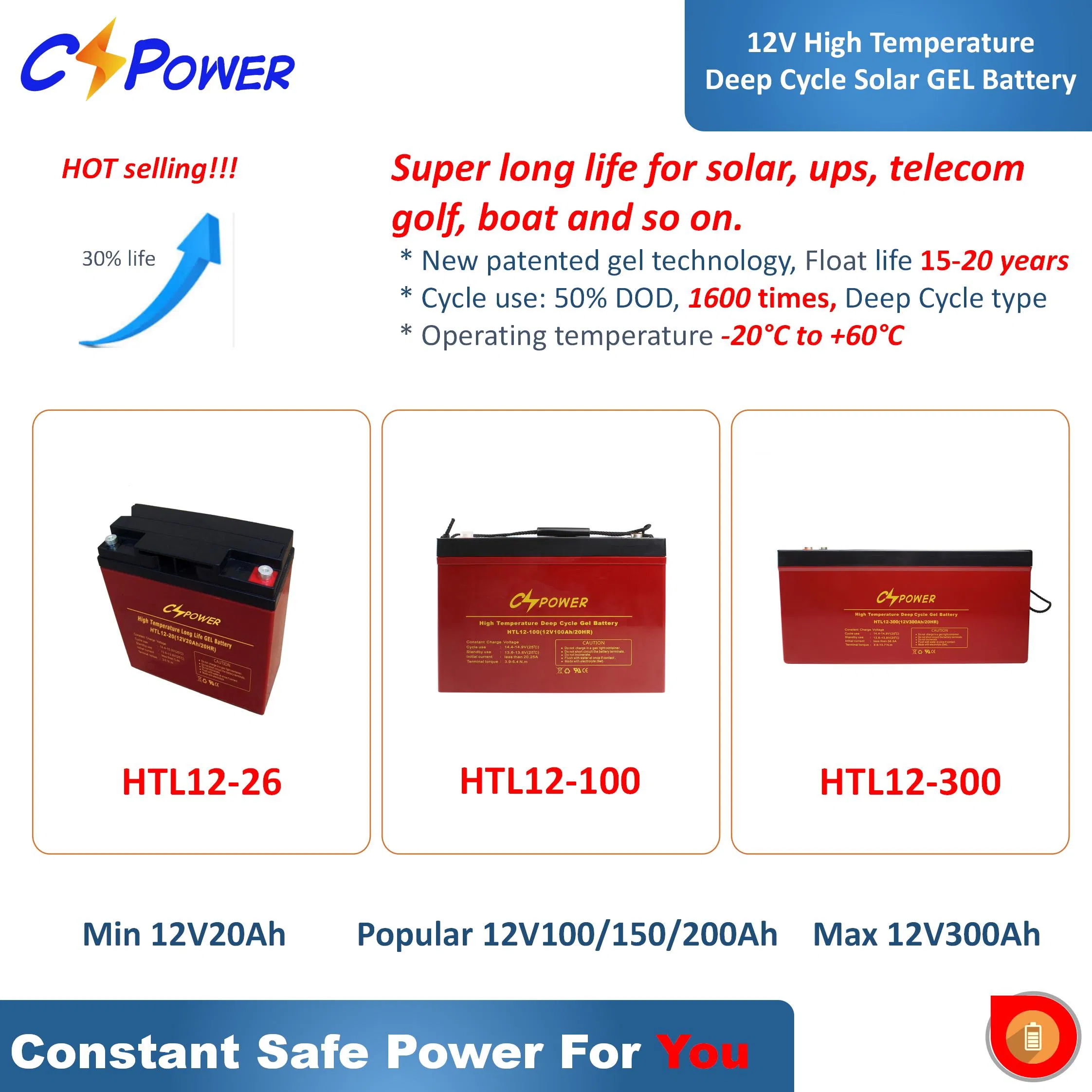

Patented High-Temp Deep Cycle Solar gel battery, designed for 15-20 years of service life. Your best partner for solar markets and high-temperature regions.
Our series of GEL deep cycle batteries are recognized as reliable and high-quality systems. Utilizing advanced patented GEL technology, these batteries offer 1500-1600 cycles at 50% DOD, complying with international standards such as IEC60896-21/22 and BS6290-4.

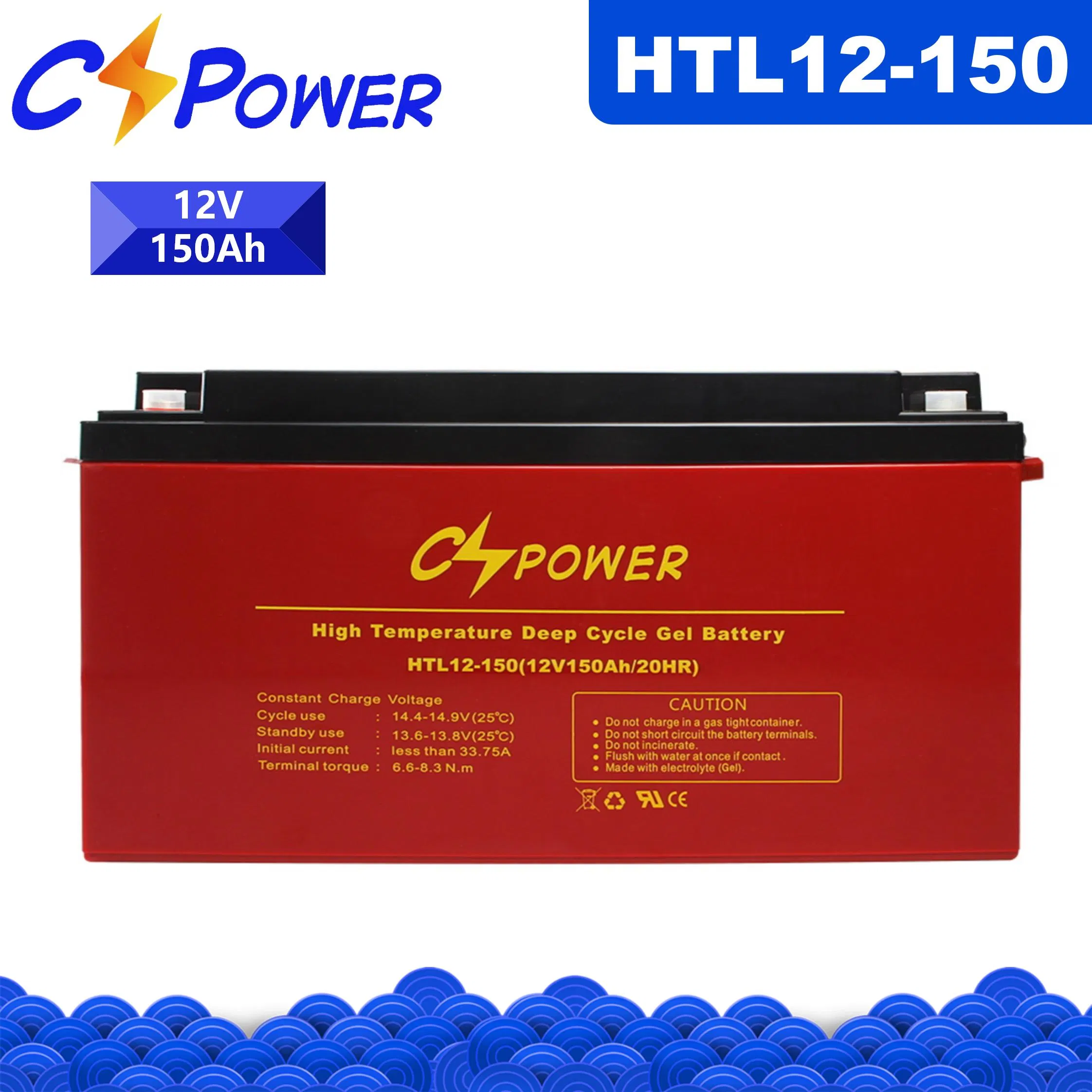

| HTL12-150 Specification | |
|---|---|
| Nominal Voltage | 12V (6 cells per unit) |
| Design Floating Life @ 25ºC | 20 Years |
| Nominal Capacity @ 25ºC | 150Ah (20 hour rate) |
| Internal Resistance | ≤4mΩ (Full Charged) |
| Max. Discharge Current | 800A (5s) |
| Self-Discharge @ 25ºC | 3% per Month |
| Dimensions (L*W*H) | 484 x 171 x 241 mm |

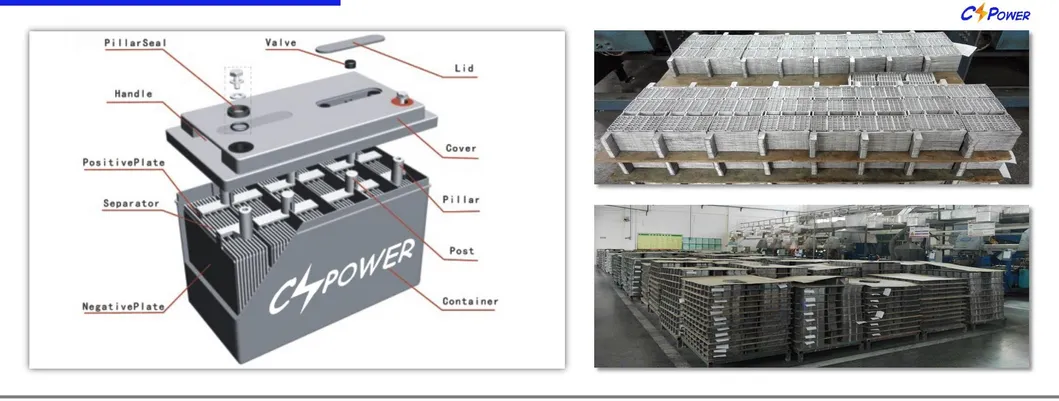

| Component | Positive Plate | Negative Plate | Electrolyte | Separator |
|---|---|---|---|---|
| Features | Thick high Sn low Ca grid with Special paste | Balanced Pb-Ca grid for recombination efficiency | Silicon Nano Gel | Advanced PVC/AGM for high pressure |
